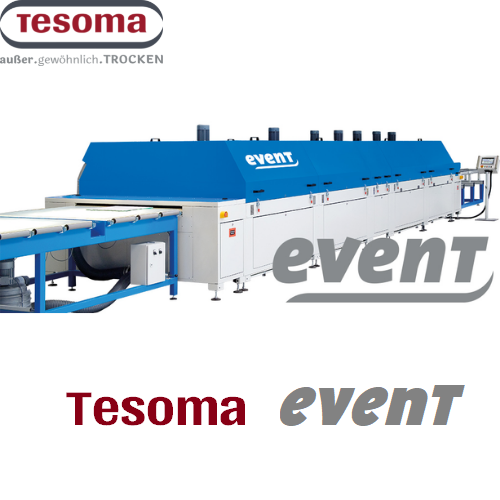

Tesoma Industrial Glass Dryer Event

Product Description

Performance features

Electrically heated continuous dryer for flat glass up to athickness of 19 mm and widths up to 2,600 mm

Effective drying results due to high air performance andcombination with various medium-wave IR emitters

Cost reduction through the use of heat recovery systems

Energy savings through custom made tailored user programs

Stepless adjustable drying temperature up to 180 °C

Great versatility for different applications

Custom dryer design by modular construction

Highest drying quality

User-friendly PLC control with recipe management

Application areas

Can be combined with all common coating technologies, suchas screen printing, roller coating, digital printing, curtain coating or edgeenameling

Highest demands on the production capacity

Great versatility – drying of different material widths

Technicaldetails:

Belt width: 900 mm, 1.100 mm, 1,300 mm, 1,500 mm, 1,700mm, 1,900 mm, 2,000 mm, 2,300 mm, 2,500 mm and 2,600 mm

Module types: Combination hot air / infrared (2 m), UVmodule (1 m), UV cooling module (2 m), cooling module passive (2 m), coolingmodule active (2 m), inlet/outlet (0.6 m)

Heating: electrically heated, process air steplesslyadjustable up to 180 °C, stepless adjustable infrared, optionally switchable ingroups

Max. thickness of slices: 19 mm

Transport system: active driven transport rollers,driven transport rollers with Teflon-coated glass fiber tape or pure glassfiber belt for thin glass

Belt speed: stepless adjustable from 1 to 10 m/min

Working height: 935 mm up to 1,400 mm

Control: comfortable PLC control: stand-by mode, recipemanagement, process interfaces (e.g., speed adjustment of transport systems),temperature control, optionally adjustable circulating air volume

Electrical connection: 400 V, 3 PEN, 50 Hz, optionalother versions available on request
