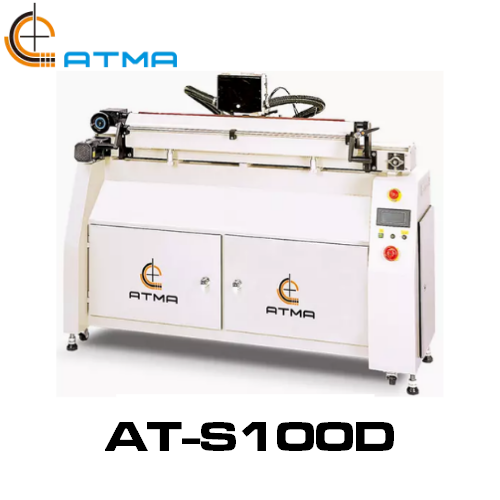

ATMA AT-S100 Automatic Squeegee Sharpener

ATMA AT-S100 Automatic Squeegee Sharpener

Product Details:

X

Product Description

Features

Diamond wheel : grinds fast and fine, balanced without vibration during high speed rotation, feed-in depth adjustable, obtaining optimal efficiency and quality.

Wheel rotation speed : extremely high speed, stepless speed adjustment, corresponding to characteristics of squeegee materials..

Grinding precision : guided by precision rails, grinding level accuracy 0.05 mm.

Automatic reverse : automatic stable speed shuttle stroke grinding, grinding wheel rotation direction and debris suction route automatically reversed followingly.

Strong suction : patented auto-reverse focused strong vacuum system, follows behind grinding wheel to suction ground off debris and collect them in collection bag under..

Squeegee holding :fast and firm holding/release design,holder jaw / squeegee level / grinding angle adjustable, corresponding to various squeegee sizes and grinding demands..

Safety protection: grinding wheel is protected in a cover,with safety switch, upon opened during wheel run, the wheel stops immediately,protects safety.





Specification

Model

AT-S100

AT-S150

Max Grinding Stroke

1000mm

150mm

Squeegee Grinding Angle

0-45 Degree

0-45 degree

Grinding Depth Range

0-20mm

0-20mm

Grinding Wheel Speed

1800-3000 rpm

1800-3000 rpm

Grinding Stroke Speed

50mm/sec

50mm/sec

Squeegee Thickness

5-10mm

5-10mm

Squeegee Holder Height

60-105mm

60-105mm

Squeegee Height with Holder

 95mm

 95mm

Power Consumption

1.85KW

1.85KW

Machine Weight

267kg

305kg

Machine Dimension

1660x600x1280mm

2160x600x1280mm
