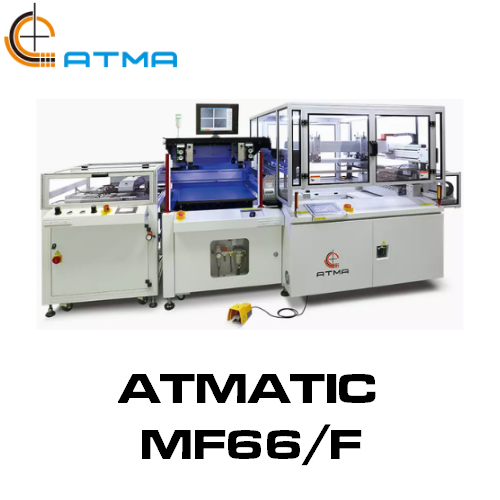

- ATMA ATMATIC MF66/F Automatic CCD Registering Screen Printer (Thin Film)
- ATMAOE MF88 Fully Automatic CCD Registering Screen Printer
- ATMA ATMAOE PC68 Fully Automatic CCD Registering PCB Screen Printer (Max Printing Area 600x800 mm)
- ATMA ATMASC 25PP CCD Green Energy Silicon Wafer Centered Registering Screen Printer

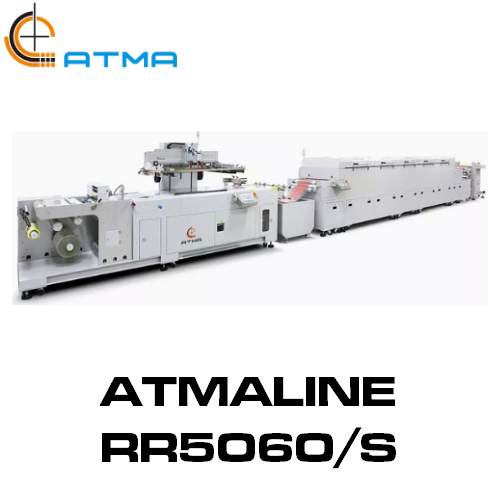

- ATMA ATMALINE RR5060/S Fully Automatic Sensor Registering Roll-To-Roll Screen Printing Line
- ATMA Four-Post Screen Printer with Gripper Take-off
- SPS STOP Cylinder Screen Printing Machines
- Lingtie Roll To Roll Screen Printing Machines
- RapidTag Label Printing Machines
- Azon DTF Printing Machines
- Tesoma Dryers
- Vastex Dryers
- RKS Squeegees
- Hurtz Standard Printing Frames
- Auxiliary Equipments
- Contact Us
ATMA AT-60FA Pneumatic Flat Screen Printer.
Product Details:
X
Product Description
Features:
Screen up down adopts double guide rails structure to operate rapid stable motion.
Three-point screen micro-adjustment, the table can be adjusted front/back / right/leftward direction to facilitate registration for multi-layer printing.
Pneumatic print head carriage up-down control facilitates exchange squeegee/flood coater/screen and ink cleaning.
Equipped with peel-off function to avoid sticky mesh after printing.
Incorporated multi-adjustment structure for squeegee / flood coater to adjust angle / depth / pressing pressure.
Digitalized control touch-screen panel possesses versatile function and easy operation.
The error message is displayed on the touch-screen panel to guide quick troubleshooting.
E-stop pressing plate and E-stop switch for safety protection.
Technical Specifications:
| Model | AT-60FA | AT-25FA | AT-45FA |
| Substrate Thickness | 0.1-30mm | 0.1-100mm | 0.1-100mm |
| Max Productivity | 740 Imp/ Hrs | 800 Imp/ Hrs | 800 Imp/ Hrs |
| Max Printing Area | 400x600mm | 200x250mm | 300x450mm |
| Max Frame OD Size | 700x950mm | 380x520mm | 500x720mm |
| Table Size | 500x700mm | 250x400mm | 400x600mm |
| Vacuum Hole Diameter | 1.5mm | 1.5mm | 1.5mm |
| Power Consumption | 0.6KW | 0.6KW | 0.6KW |
| Peel-off Height | 20mm | NA | NA |
| Table Micro-adjustment | X: 10mm,Y: 10mm | X: 10mm,Y: 10mm | X: 10mm,Y: 10mm |
| Machine Weight | 325kg | 180kg | 200kg |
| Machine Dimension | 1130x900x1700mm | 750x670x1520mm | 850x710x1520mm |
